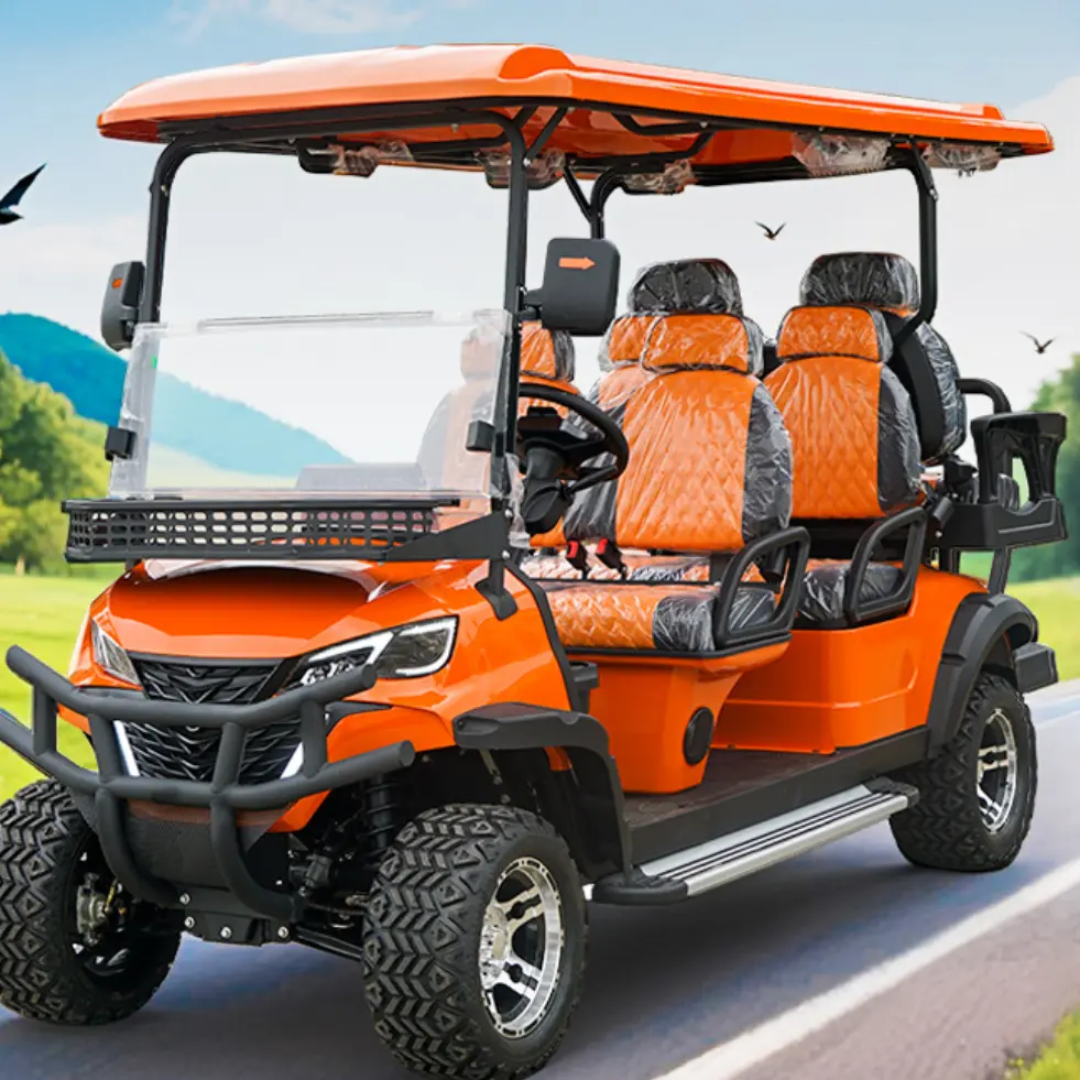

4-Seater Customizable Golf Cart-Curtis Electronics DH-C4-USA Made

**On/Off Road Wheels**

 **Water Protected Electric Systems**

 **Comfort and Maneuverability**

 Imported Components: Batteries (From USA), Delta-Q Chargers (From Canada); Curtis Controller (From USA)

Driving System: Series shunt-wound motor brings you unbelievable climbing power

Functional Collocation: Rear basket and flip-flop seat

Batteries: US or Trojan Batteries (imported)

Certification: CE for the entire electric golf cart

Includes cigarette socket

Accelerator: Adjustable inductive accelerator - continuous variable speed system

Leaf spring with Hydraulic shock absorbers

Can modify the rear basket to be rear seat or rear cargo

You can choose 4-wheel hydraulic disk or Rear mechanical drum brake and Regeneration brake collocation



4 SEATER ELECTRIC GOLF CART SPECIFICATIONS



Model: DH-C4



 GROSS WEIGHT:

1,345 lbs.| 610 KG



PASSENGER CAPACITY: 4



CARRYING CAPACITY:

1,058 lbs. | 480 KG



BATTERY:

 8V/70AH X 6 UNITS



MOTOR:

 DC 48V/4KW



DC48V400A

CURTIS ELECTRONICS

MADE IN USA



TIRES:

 ATT22” 10—10 6PLY



CHARGER:

 48V18A



FULLY AUTOMATIC

 EFFICIENCY PULSE CHARGER



GROUND CLEARANCE:

 5.9 inches| 150 MM



MAXIMUM SPEED:

19.8 mph | 32 km/h



OVERALL DIMENSIONS:

142.5” x 49” x 80.7”

 3620 X 1245 X 2050 mm



 MAXIMUM TRAVELING RANGE:

 37-43 Miles|60—70 KM



REAR CARGO DIMENSIONS:

 43.3” x 26.5” x 6.29”

 1100 x 675 x 160 mm



CLIMBING CAPACITY: 20%



QTY PER CONTAINERS:

 2 Units/20GP—6 Units/40 GP

 6 Units 40 HQ



BRAKE RANGE:

 29.5 FEET | 9 M



STANDARD PARTS:

 Front/Rear basket, Front Bumper and Light System

 MINIMUM TURNING RADIUS:

 18 FEET | 5.5 M



OPTIONAL PARTS:

Side Mirror, Inside Mirror, Seatbelts, Weather Enclosure, Sun Shade Curtain, Police Light, PA System, CD Player, Rear Facing Seat Kit, Trojan Batteries
